Installation [08/2020 - ]: Procedure

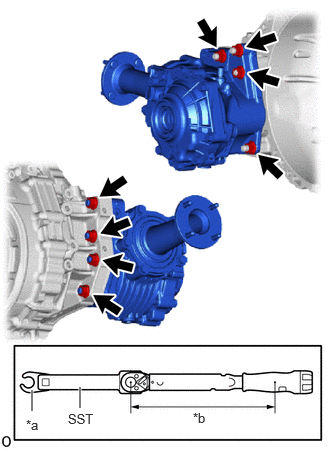

1. Using SST and a 17 mm union nut wrench, install the transfer assembly to the automatic transaxle assembly with the 8 nuts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	17 mm Union Nut Wrench
   *b	Torque Wrench Fulcrum Length

   • SST: 09961-00950

   Specified tightening torque

   Torque: 68.6 N.m (700 kgf/cm, 51 ft.lbf)

   HINT:

   • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

     Refer to PRECAUTION [06/2018 - ]

   • When using a 17 mm union nut wrench (fulcrum length of 30 mm (1.18 in.)) + SST (fulcrum length of 150 mm (5.91 in.)) + torque wrench (fulcrum length of 255 mm (10.0 in.)): 40.2 N.m (410 kgf/cm, 30 ft.lbf)

Refer to PROCEDURE - Step 13

1. Install the No. 1 propeller shaft heat insulator bracket sub-assembly to the transfer assembly with the 2 bolts.

   Torque: 25 N.m (255 kgf/cm, 18 ft.lbf)

Refer to PROCEDURE - Step 14

Refer to INSTALLATION [08/2020 - ]
