Components [08/2020 - ]

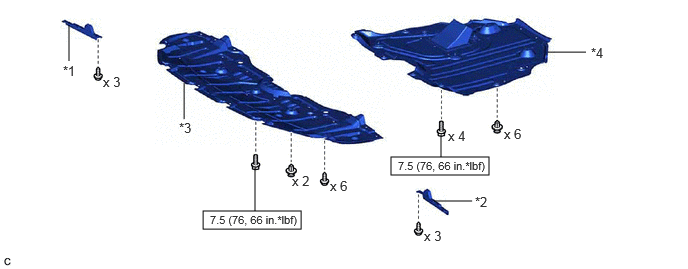

Fig 1: Transfer Case Oil Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT WHEEL OPENING EXTENSION PAD RH	*2	FRONT WHEEL OPENING EXTENSION PAD LH
*3	NO. 1 ENGINE UNDER COVER	*4	NO. 2 ENGINE UNDER COVER ASSEMBLY
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

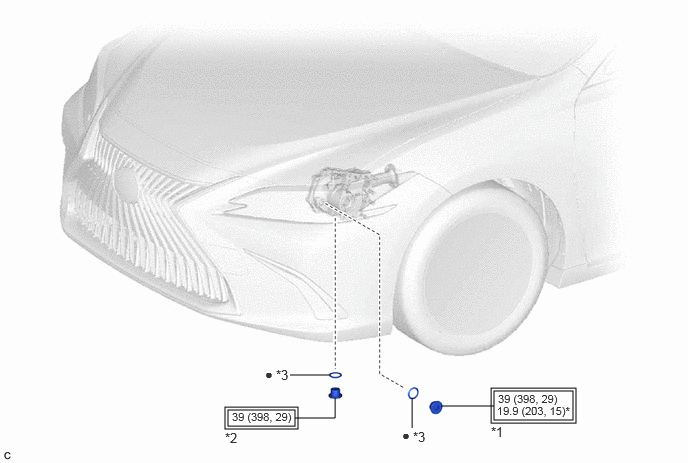

Fig 2: Transfer Case Oil Replacement Components With Torque Specifications (2 Of 2)

*1	TRANSFER FILLER PLUG	*2	TRANSFER DRAIN PLUG
*3	GASKET	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	*	For use with SST and a union nut wrench
•	Non-reusable part	-	-
