Removal [09/2022 - ]: Procedure

  1. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    Refer to REMOVAL [08/2021 - ]

  2. REMOVE VSC OFF SWITCH

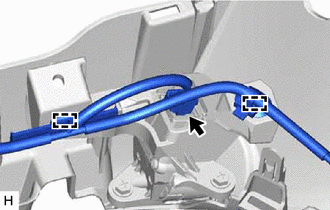

    1. Disconnect the connector from the VSC OFF switch.
      GTY807702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 clamps to separate the wire harness.
    3. Remove the 3 screws and VSC OFF switch from the instrument cluster finish panel assembly.
      GTY807704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
