Components [06/2018 - ]

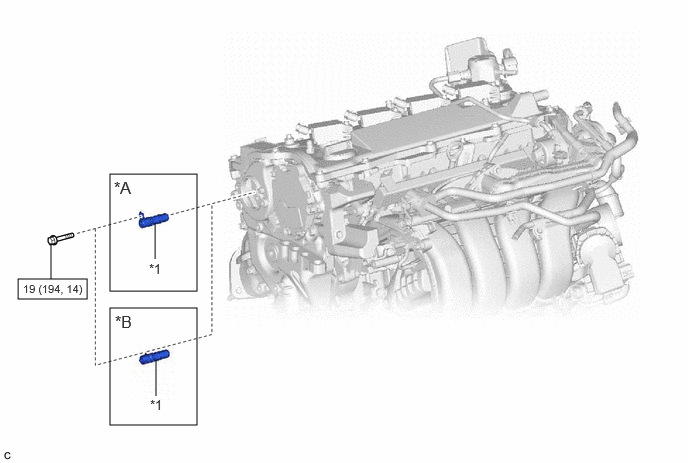

Fig 1: Camshaft Oil Control Valve Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A
Type A
*B
Type B
*1
CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (EXHAUST CAMSHAFT TIMING GEAR BOLT ASSEMBLY)
-
-
N.m (kgf/cm, ft.lbf): Specified torque
-
-
