Components [08/2021 - ]

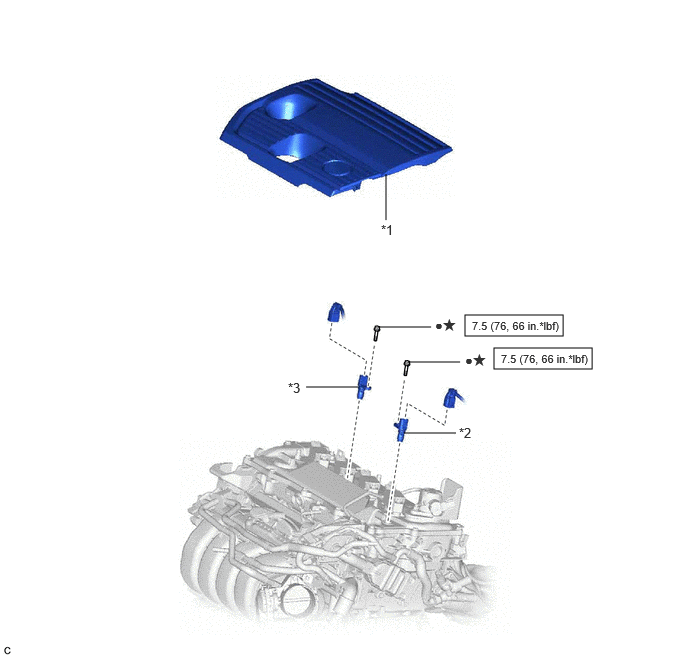

Fig 1: Camshaft Position Sensor Replacement Components With Torque Specifications [08/2021 - ]
GTY1084786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 1 ENGINE COVER SUB-ASSEMBLY *2 CAMSHAFT POSITION SENSOR (for Intake Side)
*3 CAMSHAFT POSITION SENSOR (for Exhaust Side) - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
* Precoated part - -
