Removal [09/2022 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

  2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 1

  3. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 18

  4. REMOVE CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY

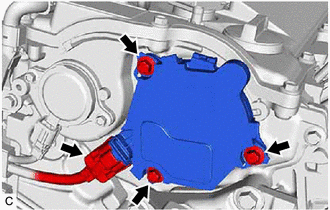

    1. Disconnect the cam timing control motor with EDU assembly connector.
      GTY771562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 bolts and cam timing control motor with EDU assembly from the No. 2 timing gear cover assembly.
      NOTE:

      If the cam timing control motor with EDU assembly has been struck or dropped, replace it.

  5. REMOVE CAM TIMING CONTROL MOTOR O-RING

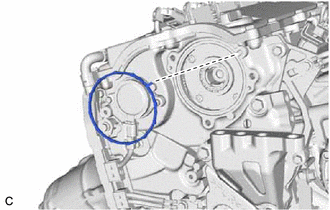

    1. Remove the cam timing control motor O-ring from the No. 2 timing gear cover assembly.
      GTY754319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
