Removal [09/2022 - ]: Procedure

  1. DRAIN ENGINE COOLANT (for Engine)

    Refer to PROCEDURE - Step 1

  2. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1

  3. REMOVE INLET AIR CLEANER ASSEMBLY

    Refer to PROCEDURE - Step 6

  4. REMOVE NO. 2 ENGINE COOLANT TEMPERATURE SENSOR

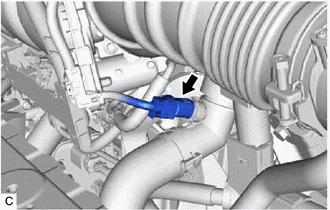

    1. Disconnect the No. 2 engine coolant temperature sensor connector.
      GTY762822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

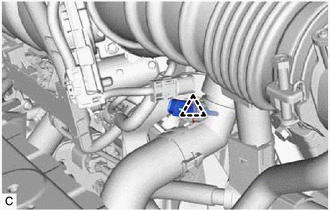

    2. Remove the clip and No. 2 engine coolant temperature sensor from the radiator pipe.
      GTY762823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      If the No. 2 engine coolant temperature sensor has been struck or dropped, replace it.

  5. REMOVE INVERTER WITH CONVERTER ASSEMBLY

    Refer to REMOVAL [09/2022 - ]

  6. REMOVE ENGINE COOLANT TEMPERATURE SENSOR

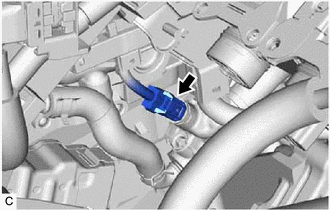

    1. Disconnect the engine coolant temperature sensor connector.
      GTY773443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

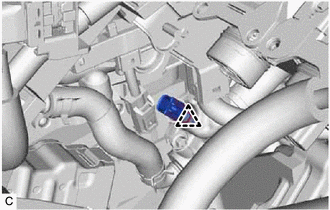

    2. Remove the clip and engine coolant temperature sensor from the water outlet.
      GTY762824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      If the engine coolant temperature sensor has been struck or dropped, replace it.
