Removal [06/2018 - 10/2019]: Procedure

  1. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 7

  2. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

    Refer to PROCEDURE - Step 8

  3. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 9

  4. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 10

  5. REMOVE ENGINE OIL TEMPERATURE SENSOR

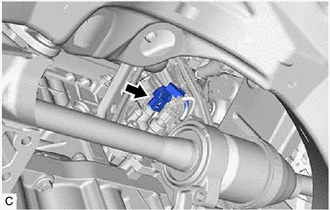

    1. Disconnect the engine oil temperature sensor connector.
      GTY754300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

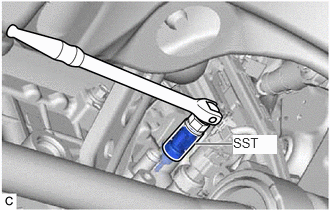

    2. Using SST, remove the engine oil temperature sensor from the cylinder block sub-assembly.
      GTY752842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09817-33191
      NOTE:

      If the engine oil temperature sensor has been struck or dropped, replace it.

    3. Remove the gasket from the engine oil temperature sensor.
