Components [06/2018 - 08/2021]

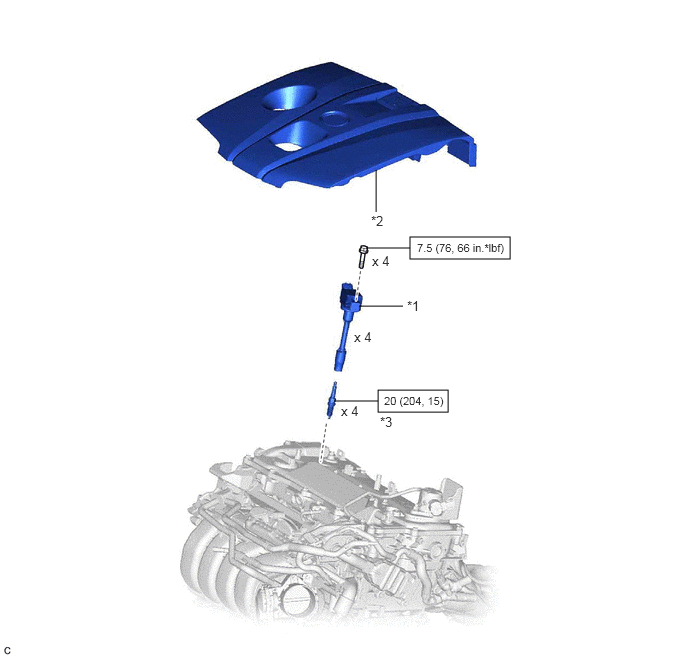

Fig 1: Ignition Coil And Spark Plug Replacement Components With Torque Specifications [06/2018 - 08/2021]
GTY793657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 IGNITION COIL ASSEMBLY *2 NO. 1 ENGINE COVER SUB-ASSEMBLY
*3 SPARK PLUG - -
N.m (kgf/cm, ft.lbf): Specified torque - -
