Components [06/2018 - ]

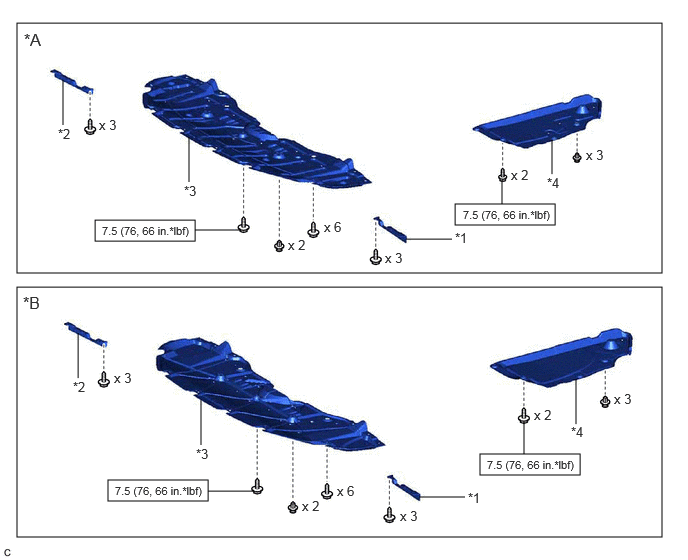

Fig 1: Active Control Engine Mount (Front Side) Replacement Components With Torque Specifications (1 Of 3)
| *A | Type A | *B | Type B |
| *1 | FRONT WHEEL OPENING EXTENSION PAD LH | *2 | FRONT WHEEL OPENING EXTENSION PAD RH |
| *3 | NO. 1 ENGINE UNDER COVER | *4 | NO. 3 ENGINE UNDER COVER |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
Fig 2: Active Control Engine Mount (Front Side) Replacement Components With Torque Specifications (2 Of 3)
| *A | w/ Performance Damper | - | - |
| *1 | SUSPENSION TOWER DAMPER | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

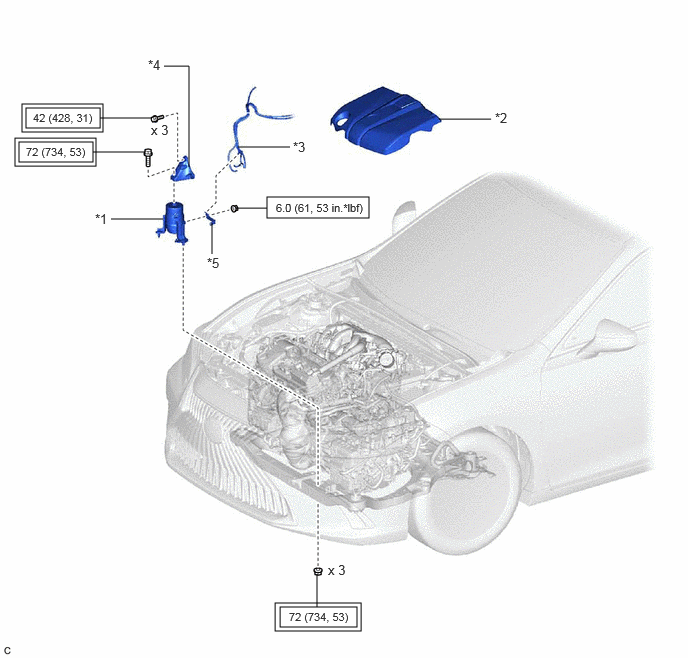

Fig 3: Active Control Engine Mount (Front Side) Replacement Components With Torque Specifications (3 Of 3)
| *1 | FRONT ENGINE MOUNTING INSULATOR | *2 | V-BANK COVER SUB-ASSEMBLY |
| *3 | VACUUM HOSE | *4 | FRONT ENGINE MOUNTING BRACKET |
| *5 | STAY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque |
