Removal [06/2018 - ]: Procedure

REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 15 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 15 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 15 [09/2022 - ]

REMOVE ACCELERATOR PEDAL(W/SENSOR) ROD ASSEMBLY

NOTE:

Avoid physical shock to the accelerator pedal sensor assembly.
Do not disassemble the accelerator pedal sensor assembly.
The accelerator pedal sensor assembly does not require lubrication.
Do not apply oil or other lubricants to the accelerator pedal sensor assembly. If applied, the accelerator pedal sensor assembly must be replaced.

Disconnect the accelerator pedal sensor assembly connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for TMK Made
*B	for TMMK Made

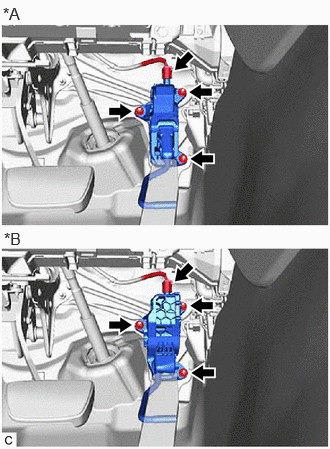

Remove the 3 nuts and disconnect the rod of the accelerator pedal sensor assembly from the accelerator pedal assembly to remove the accelerator pedal sensor assembly.
NOTE:
If the accelerator pedal sensor assembly has been struck or dropped, replace it.

REMOVE ACCELERATOR PEDAL PAD

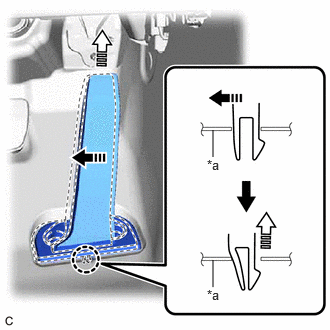

Disengage the 4 claws and remove the accelerator pedal pad from the accelerator pedal assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE ACCELERATOR PEDAL ASSEMBLY

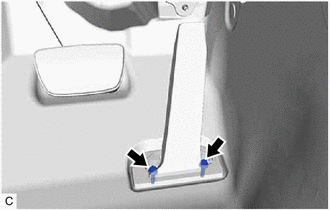

Remove the 2 bolts.

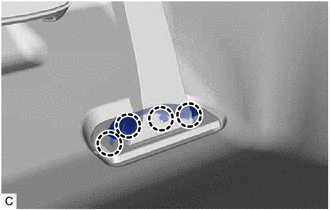

Push the accelerator pedal assembly in the direction indicated by the arrow (1) shown in the illustration to disengage the claw.

Pull the accelerator pedal assembly in the direction indicated by the arrow (2) shown in the illustration to remove it.
