Components [06/2018 - ]

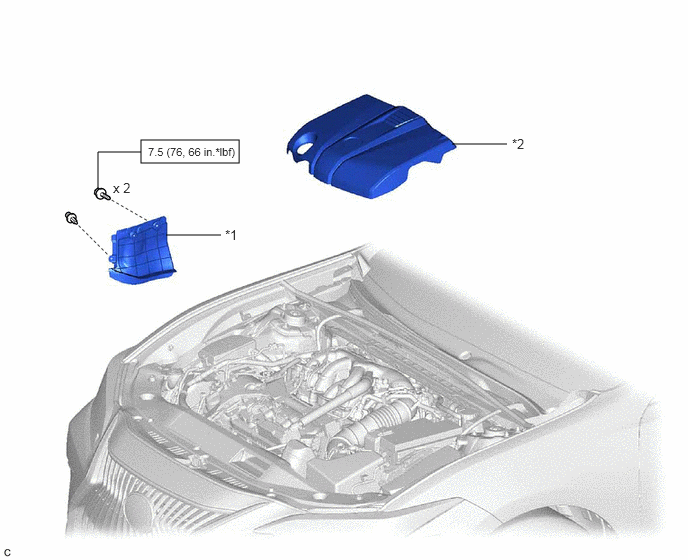

Fig 1: Camshaft Oil Control Solenoid Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT FENDER APRON SEAL RH	*2	V-BANK COVER SUB-ASSEMBLY
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

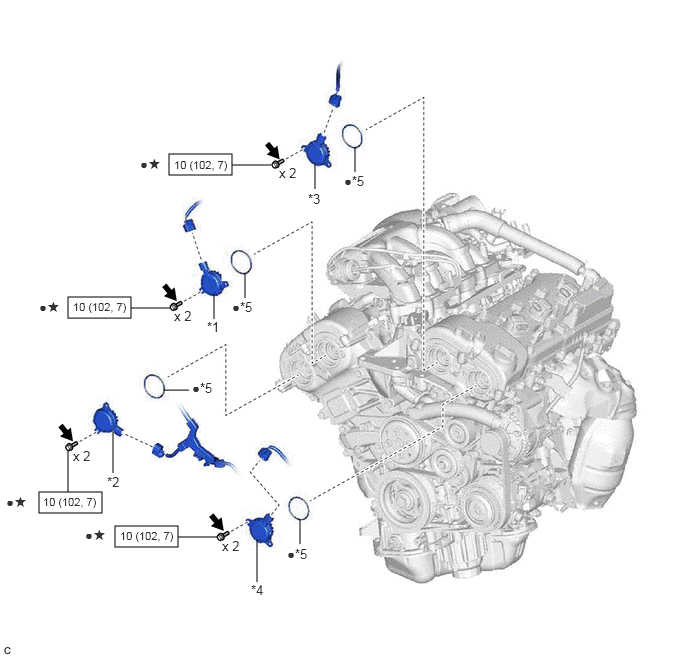

Fig 2: Camshaft Oil Control Solenoid Replacement Components With Torque Specifications (2 Of 2)

*1	CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 1)	*2	CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 1)
*3	CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 2)	*4	CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 2)
*5	O-RING	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	Adhesive 1324	*	Precoated part
