Inspection [06/2018 - ]: Procedure
- INSPECT CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY
HINT:
Use the same procedure for the intake side and exhaust side.
- Check the resistance.
- Measure the resistance according to the value(s) in the table below.

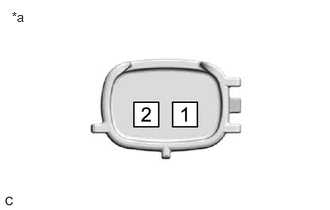

*a Component without harness connected
(Camshaft Timing Oil Control Solenoid Assembly)Standard Resistance
Tester Connection Condition Specified Condition 1 - 2 0 °C (32 °F) 5.3 to 6.3 Ω 20 °C (68 °F) 5.8 to 6.8 Ω 40 °C (104 °F) 6.2 to 7.4 Ω If the result is not as specified, replace the camshaft timing oil control solenoid assembly.
- Measure the resistance according to the value(s) in the table below.
- Stroke Amount Inspection

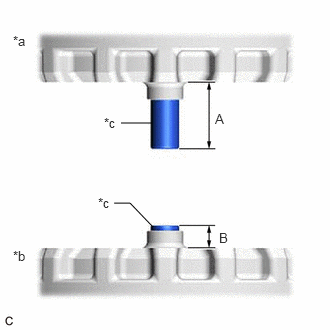

- Using vernier calipers, measure length (A) and (B) with the shaft of the camshaft timing oil control solenoid assembly set in the respective positions shown in the illustration.NOTE:
Do not apply battery voltage to the terminals of the camshaft timing oil control solenoid assembly.
HINT:
If the shaft does not extend under its own weight, extend the shaft with your fingers.
*a Shaft Side Facing Down *b Shaft Side Facing Up *c Shaft - Calculate the stroke amount based on the difference of length (A) and (B).
Standard
6.5 mm (0.256 in.) or more
HINT:
Stroke amount = length (A) - length (B)
If the value is not as specified, replace the camshaft timing oil control solenoid assembly.
- Using vernier calipers, measure length (A) and (B) with the shaft of the camshaft timing oil control solenoid assembly set in the respective positions shown in the illustration.
- Check the resistance.
