Removal [06/2018 - ]: Procedure

  1. REMOVE INTAKE AIR SURGE TANK ASSEMBLY

    Refer to REMOVAL [06/2018 - 08/2021] , or refer to REMOVAL [08/2021 - 09/2022] , or refer to REMOVAL [09/2022 - ]

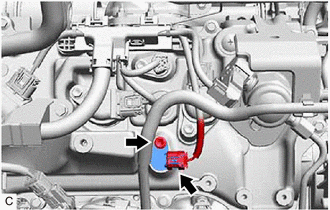

  2. REMOVE VVT SENSOR (for Intake Side of Bank 1)
    1. Disconnect the VVT sensor connector.
      GTY766145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and VVT sensor from the cylinder head cover sub-assembly.
      NOTE:

      If the VVT sensor has been struck or dropped, replace it.

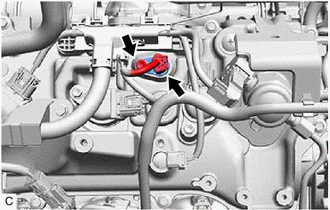

  3. REMOVE VVT SENSOR (for Exhaust Side of Bank 1)
    1. Disconnect the VVT sensor connector.
      GTY766144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and VVT sensor from the cylinder head cover sub-assembly.
      NOTE:

      If the VVT sensor has been struck or dropped, replace it.

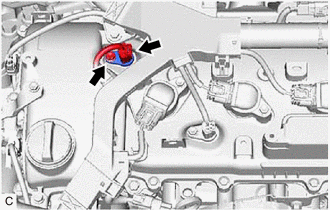

  4. REMOVE VVT SENSOR (for Intake Side of Bank 2)
    1. Disconnect the VVT sensor connector.
      GTY766146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and VVT sensor from the cylinder head cover sub-assembly LH.
      NOTE:

      If the VVT sensor has been struck or dropped, replace it.

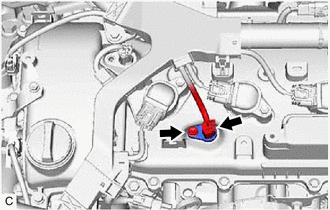

  5. REMOVE VVT SENSOR (for Exhaust Side of Bank 2)
    1. Disconnect the VVT sensor connector.
      GTY774160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and VVT sensor from the cylinder head cover sub-assembly LH.
      NOTE:

      If the VVT sensor has been struck or dropped, replace it.
