Components [06/2018 - ]

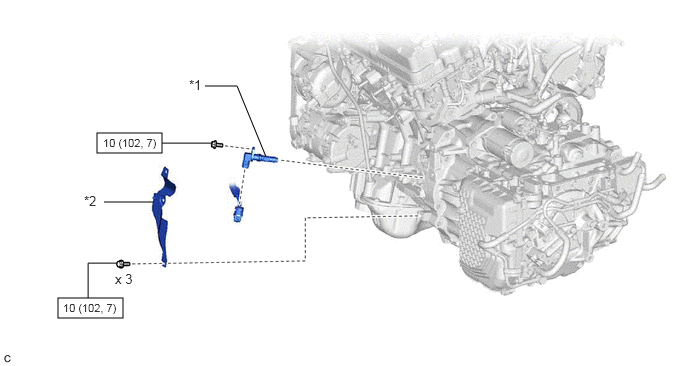

Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specifications
GTY742496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 CRANKSHAFT POSITION SENSOR *2 CRANKSHAFT POSITION SENSOR PROTECTOR
N.m (kgf/cm, ft.lbf): Specified torque - -
