Components [06/2018 - ]

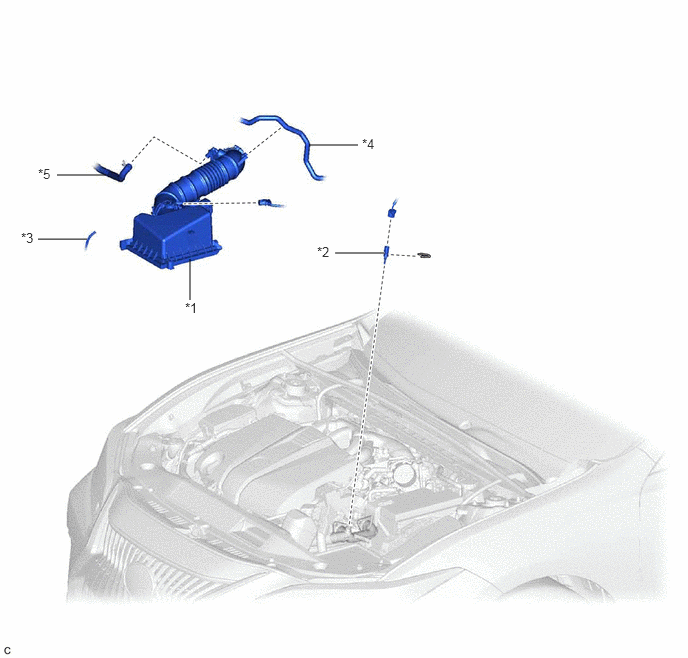

Fig 1: Engine Coolant Temperature Sensor Replacement Components
GTY835778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 AIR CLEANER CAP WITH AIR CLEANER HOSE *2 ENGINE COOLANT TEMPERATURE SENSOR
*3 VACUUM HOSE *4 NO. 1 FUEL VAPOR FEED HOSE
*5 NO. 2 VENTILATION HOSE - -
