Components [06/2018 - ]

Fig 1: Heated Oxygen Sensor Replacement Components With Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	Type A	*B	Type B
*1	FRONT FLOOR COVER RH	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

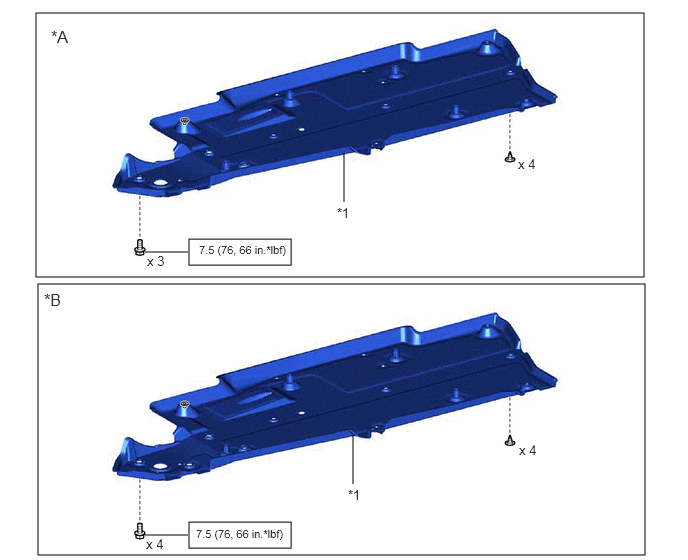

Fig 2: Heated Oxygen Sensor Replacement Components With Torque Specifications (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	Type A	*B	Type B
*1	FRONT FLOOR COVER LH	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

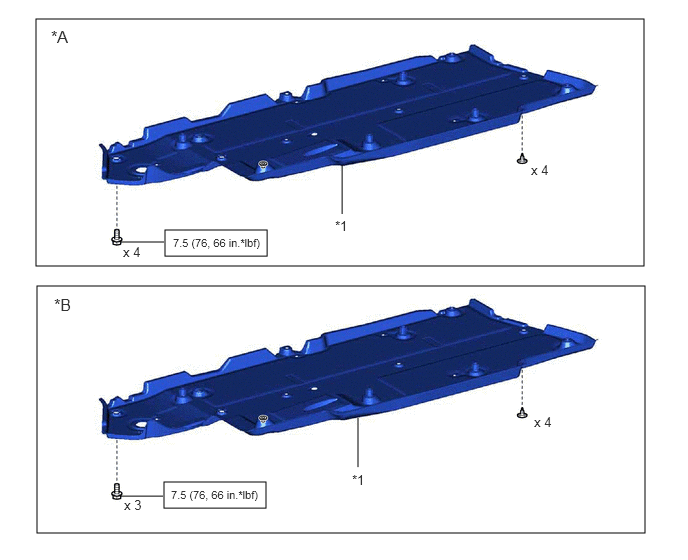

Fig 3: Heated Oxygen Sensor Replacement Components With Torque Specifications (3 Of 4)

*A	Type A	*B	Type B
*1	BODY MOUNTING PLATE	*2	FRONT WHEEL OPENING EXTENSION PAD LH
*3	FRONT WHEEL OPENING EXTENSION PAD RH	*4	NO. 1 ENGINE UNDER COVER
*5	NO. 2 ENGINE UNDER COVER	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

Fig 4: Heated Oxygen Sensor Replacement Components With Torque Specifications (4 Of 4)

*1	FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)	*2	NO. 1 EXHAUST PIPE SUPPORT BRACKET (for Lower Side)
*3	HEATED OXYGEN SENSOR (for Bank 2)	*4	HEATED OXYGEN SENSOR (for Bank 1)
*5	GASKET	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with SST
•	Non-reusable part	-	-
