Components [06/2018 - ]

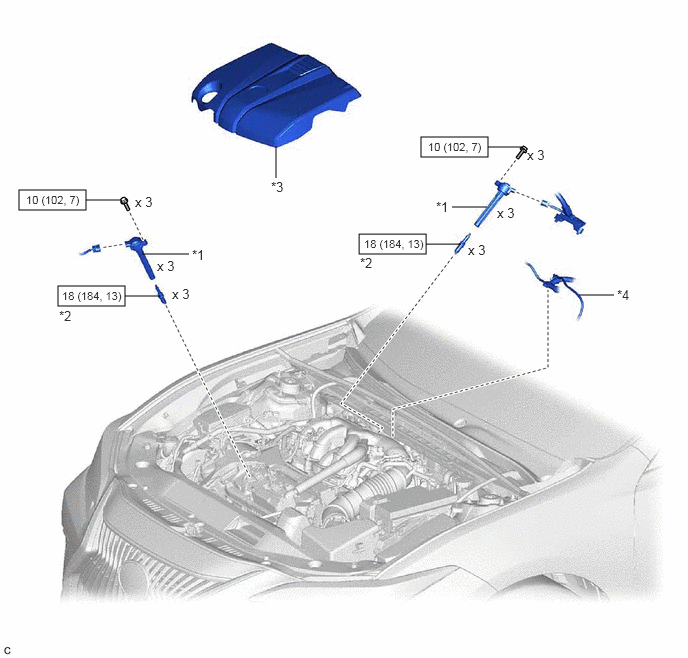

Fig 1: Ignition Coil And Spark Plug Replacement Components With Torque Specifications
GTY809148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 IGNITION COIL ASSEMBLY *2 SPARK PLUG
*3 V-BANK COVER SUB-ASSEMBLY *4 VACUUM HOSE
N.m (kgf/cm, ft.lbf): Specified torque - -
