Removal [06/2018 - ]: Procedure

Refer to PROCEDURE - Step 19 [06/2018 - 10/2019] , or refer to PROCEDURE - Step 19 [10/2019 - 08/2021] , or refer to PROCEDURE - Step 19 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 19 [09/2022 - ]

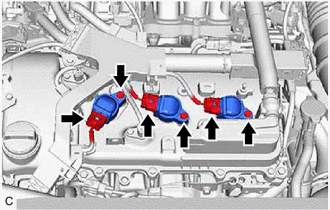

1. Disconnect the 3 ignition coil assembly connectors.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the 3 bolts and 3 ignition coil assemblies from the cylinder head cover sub-assembly LH.
   NOTE:

   If an ignition coil assembly has been struck or dropped, replace it.

   HINT:

   Arrange the removed parts in the correct order.

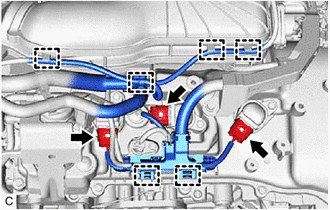

3. Disengage the 4 clamps to separate the vacuum hose from the intake air surge tank assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Disengage the 2 wire harness clamps.

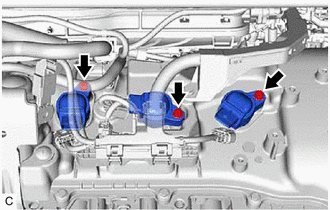

5. Disconnect the 3 ignition coil assembly connectors.
6. Remove the 3 bolts and 3 ignition coil assemblies from the cylinder head cover sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   If an ignition coil assembly has been struck or dropped, replace it.

   HINT:

   Arrange the removed parts in the correct order.

Refer to PROCEDURE - Step 3
