Components [06/2018 - ]

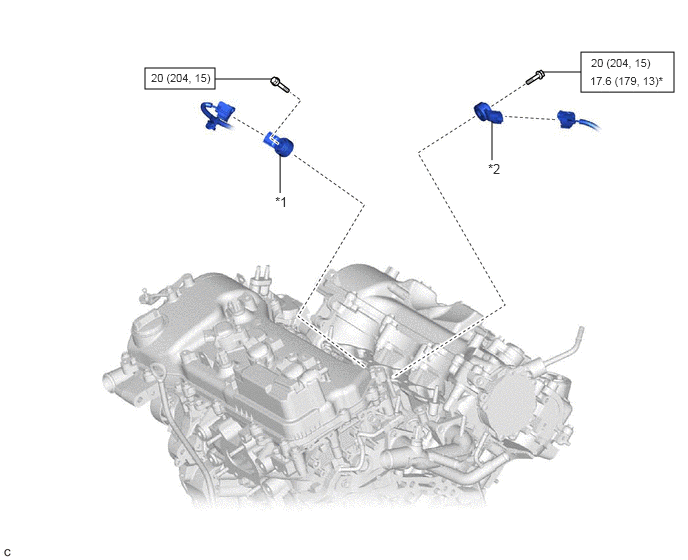

Fig 1: Knock Sensor Replacement Components With Torque Specifications
GTY744787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 KNOCK CONTROL SENSOR (for Bank 1) *2 KNOCK CONTROL SENSOR (for Bank 2)
N.m (kgf/cm, ft.lbf): Specified torque * For use with a union nut wrench
