Removal [06/2018 - ]: Procedure

  1. REMOVE FRONT DOOR SCUFF PLATE LH (for LH Side)

    Refer to PROCEDURE - Step 4 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 4 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 4 [09/2022 - ]

  2. REMOVE COWL SIDE TRIM BOARD LH (for LH Side)

    Refer to PROCEDURE - Step 5 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 5 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 5 [09/2022 - ]

  3. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (for LH Side)

    Refer to PROCEDURE - Step 15 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 15 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 15 [09/2022 - ]

  4. REMOVE FRONT DOOR OPENING TRIM COVER LH (for LH Side)

    Refer to PROCEDURE - Step 6 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 6 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 6 [09/2022 - ]

  5. REMOVE INSTRUMENT SIDE PANEL LH (for LH Side)

    Refer to PROCEDURE - Step 14 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 14 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 14 [09/2022 - ]

  6. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (for LH Side)

    Refer to PROCEDURE - Step 16 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 16 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 16 [09/2022 - ]

  7. REMOVE FRONT DOOR SCUFF PLATE RH (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 4 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 4 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 4 [09/2022 - ]

  8. REMOVE COWL SIDE TRIM BOARD RH (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 5 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 5 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 5 [09/2022 - ]

  9. REMOVE FRONT DOOR OPENING TRIM COVER RH (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 6 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 6 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 6 [09/2022 - ]

  10. REMOVE INSTRUMENT SIDE PANEL RH (for RH Side)

    Refer to PROCEDURE - Step 23 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 22 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 22 [09/2022 - ]

  11. REMOVE LOWER INSTRUMENT FINISH SUB PANEL (for RH Side)

    Refer to PROCEDURE - Step 25 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 24 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 24 [09/2022 - ]

  12. REMOVE ACCELERATION SENSOR ASSEMBLY LH (for LH Side)
    1. Disconnect the connector from the acceleration sensor assembly LH.
      GTY828346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.
    3. Remove the 2 nuts and acceleration sensor assembly LH.
      NOTE:
      • Avoid any impact to the acceleration sensor assembly LH.
      • Do not drop the acceleration sensor assembly LH. If it is dropped, replace it with a new one.
  13. REMOVE ACCELERATION SENSOR ASSEMBLY RH (for RH Side)
    1. Disconnect the connector from the acceleration sensor assembly RH.

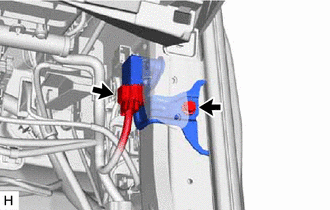

      GTY783391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and acceleration sensor assembly RH.
      NOTE:
      • Avoid any impact to the acceleration sensor assembly RH.
      • Do not drop the acceleration sensor assembly RH. If it is dropped, replace it with a new one.
