Inspection [08/2015 - 08/2019]: Procedure
- INSPECT COMBINATION SWITCH ASSEMBLY (CRAWL CONTROL SWITCH)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

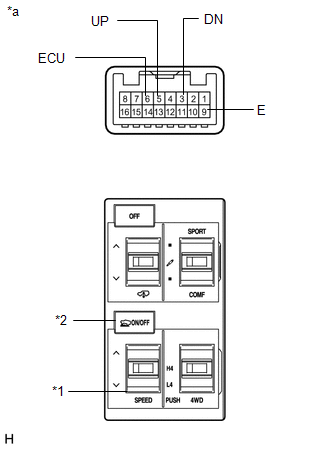

Tester Connection Switch Condition Specified Condition 5 (UP) - 9 (E) SPEED (UP): Pressed Below 1 Ω SPEED (UP): Not Pressed 10 kΩ or higher 3 (DN) - 9 (E) SPEED (DOWN): Pressed Below 1 Ω SPEED (DOWN): Not Pressed 10 kΩ or higher 6 (ECU) - 9 (E) ON/OFF: Pressed Below 1 Ω ON/OFF: Not pressed 10 kΩ or higher TEXT IN ILLUSTRATION*1 Speed Selector Switch *2 ON/OFF Switch *a Component without harness connected
(Combination Switch)If the result is not as specified, replace the combination switch assembly (crawl control switch).
- Measure the resistance according to the value(s) in the table below.
