Inspection [08/2021 - ]: Procedure
- INSPECT CENTER CLUSTER MODULE SWITCH LH (DOWNHILL ASSIST CONTROL SWITCH)

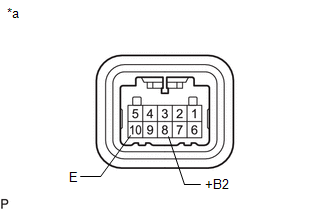

- Measure the resistance according to the value(s) in the table below.
*a Component without harness connected
(Center Cluster Module Switch LH (Downhill Assist Control Switch))Standard Resistance
Tester Connection Switch Condition Specified Condition 8 (+B2) - 10 (E) ON 100 Ω or less OFF 10 kΩ or higher If the result is not as specified, replace the center cluster module switch LH (downhill assist control switch).

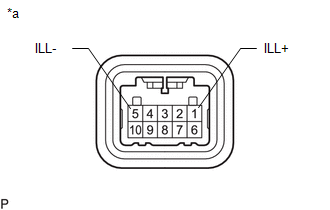

- Apply battery voltage between the terminals of the center cluster module switch LH (downhill assist control switch), and check the illumination condition of the center cluster module switch LH (downhill assist control switch).
*a Component without harness connected
(Center Cluster Module Switch LH (Downhill Assist Control Switch))Standard
Measurement Condition Specified Condition Battery positive (+) → 1 (ILL+)
Battery negative (-) → 5 (ILL-)Illuminates If the result is not as specified, replace the center cluster module switch LH (downhill assist control switch).
- Measure the resistance according to the value(s) in the table below.
