Components [08/2019 - ]

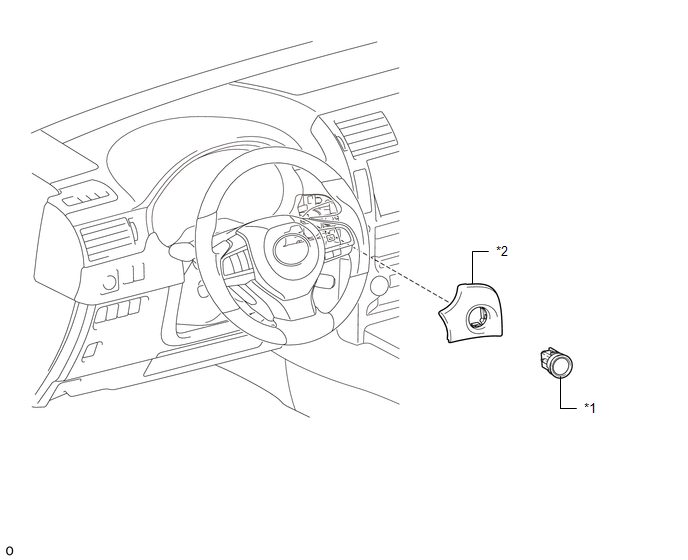

Fig 1: Engine Switch Replacement Components [08/2019 - ]
GTY948218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ENGINE SWITCH *2 NO. 1 INSTRUMENT PANEL FINISH CUSHION
