Installation [08/2019 - ]: Procedure

  1. INSTALL ENGINE SWITCH

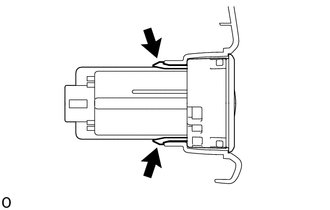

    GTY947259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Attach the 2 claws to install the engine switch.
  2. INSTALL NO. 1 INSTRUMENT PANEL FINISH CUSHION

    Refer to PROCEDURE - Step 28 [08/2019 - 08/2021] , or refer to PROCEDURE - Step 30 [08/2021 - ]
