Components [08/2015 - 08/2016]

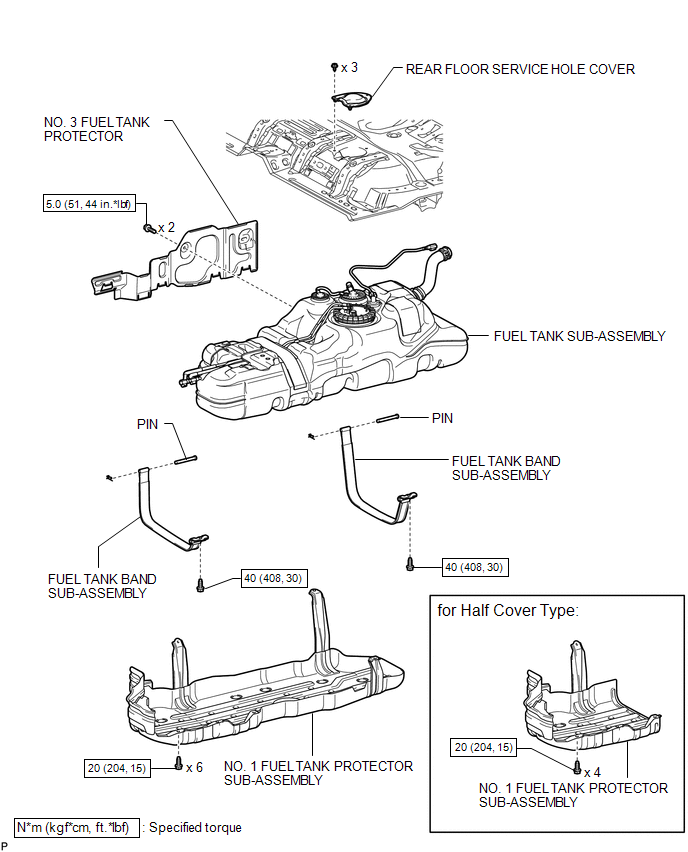

Fig 1: Fuel Tank Replacement Components With Torque Specifications (1 Of 2)
GTY650970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

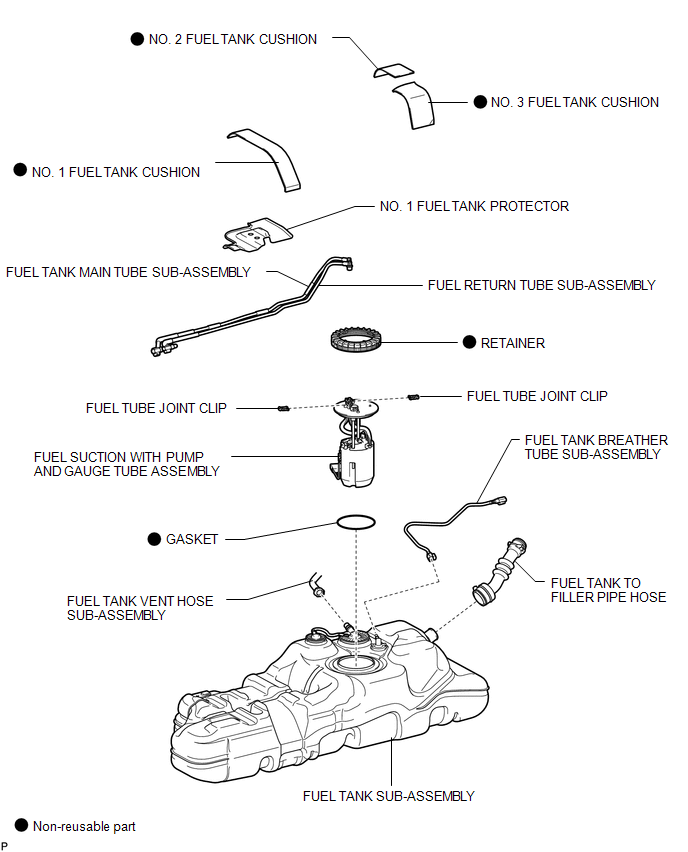

Fig 2: Fuel Tank Replacement Components (2 Of 2)
GTY622734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
