ACIS Control Circuit [08/2015 - ]: Procedure

  1. PERFORM ACTIVE TEST USING TECHSTREAM (OPERATE VACUUM SWITCHING VALVE FOR ACIS)

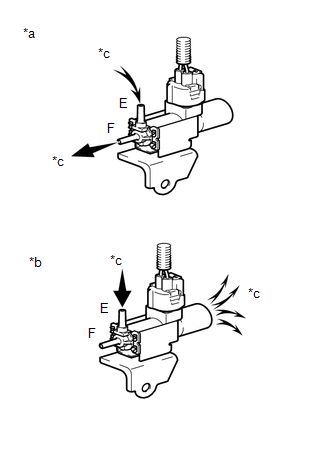

    GTY270362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the vacuum hose from port F on the vacuum switching valve (for ACIS).
    2. Connect the Techstream to the DLC3.
    3. Start the engine.
    4. Enter the following menus: Powertrain / Engine and ECT / Active Test / Active the VSV for Intake Control.
    5. Operate the vacuum switching valve for ACIS.
    6. Check the vacuum switching valve air flow when switching the vacuum switching valve.

      OK

      Test Condition Specified Condition
      Vacuum switching valve is ON Air from port E flows out through port F
      Vacuum switching valve is OFF Air from port E flows out through air filter
      TEXT IN ILLUSTRATION

      *a VSV is ON
      *b VSV is OFF
      *c Air

    Result:

    NG

    See step  4

    Result:

    OK

    See step  2

  2. CHECK VACUUM HOSES (VACUUM SWITCHING VALVE (FOR ACIS) - INTAKE AIR CONTROL VALVE, INTAKE MANIFOLD)
    1. Check the vacuum hoses is not clogged, damaged, disconnected or bent.

    Result:

    NG

    REPAIR OR REPLACE VACUUM HOSES

    Result:

    OK

    See step  3

  3. INSPECT INTAKE MANIFOLD (INTAKE AIR CONTROL VALVE)
    1. Inspect the intake air control valve (Refer to PROCEDURE - Step 1 ).

    Result:

    OK

    PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

    (Refer to PROBLEM SYMPTOMS TABLE [08/2015 - 08/2019] , or refer to PROBLEM SYMPTOMS TABLE [08/2019 - ] )

    Result:

    NG

    REPLACE INTAKE MANIFOLD

    (Refer to REMOVAL [08/2015 - ] )

  4. INSPECT VACUUM SWITCHING VALVE ASSEMBLY (FOR ACIS)
    1. Inspect the vacuum switching valve assembly (for ACIS) (Refer to ON-VEHICLE INSPECTION [08/2015 - ] ).

    Result:

    NG

    REPLACE VACUUM SWITCHING VALVE ASSEMBLY (FOR ACIS)

    (Refer to REMOVAL [08/2015 - ] )

    Result:

    OK

    See step  5

  5. CHECK HARNESS AND CONNECTOR (VACUUM SWITCHING VALVE (FOR ACIS) - ECM AND NO. 1 INTEGRATION RELAY)
    1. Disconnect the vacuum switching valve (for ACIS) connector.
    2. Disconnect the ECM connector.
    3. Remove the No. 1 integration relay from the engine room relay block.
    4. Disconnect the No. 1 integration relay connector.
    5. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C9-2 - C30-19 (ACIS) Always Below 1 Ω
      C9-1 - 1B-4 Always Below 1 Ω
      C9-2 or C30-19 (ACIS) - Body ground Always 10 kΩ or higher
      C9-1 or 1B-4 - Body ground Always 10 kΩ or higher

    Result:

    OK

    REPLACE ECM

    (Refer to REMOVAL [08/2015 - ] )

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
