Removal [08/2015 - ]: Procedure

REMOVE V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 16 [08/2015 - 08/2020] , or refer to PROCEDURE - Step 16 [08/2020 - ]
REMOVE AIR CLEANER CAP AND HOSE
Refer to PROCEDURE - Step 24 [08/2015 - 08/2020] , or refer to PROCEDURE - Step 24 [08/2020 - ]

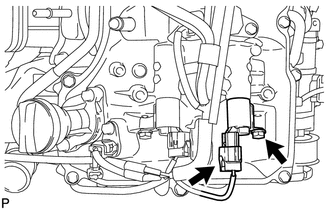

REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Exhaust Side of Bank 1)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the camshaft timing oil control valve connector.
2. Remove the bolt and camshaft timing oil control valve.
3. Remove the O-ring from the camshaft timing oil control valve.

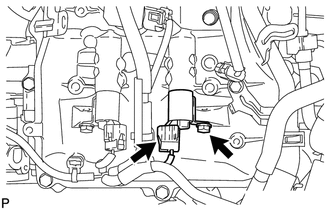

REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Intake Side of Bank 1)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the camshaft timing oil control valve connector.
2. Remove the bolt and camshaft timing oil control valve.
3. Remove the O-ring from the camshaft timing oil control valve.

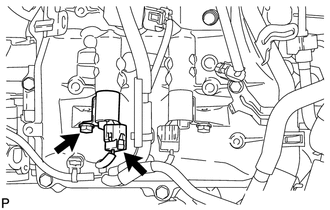

REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Intake Side of Bank 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the camshaft timing oil control valve connector.
2. Remove the bolt and camshaft timing oil control valve.
3. Remove the O-ring from the camshaft timing oil control valve.

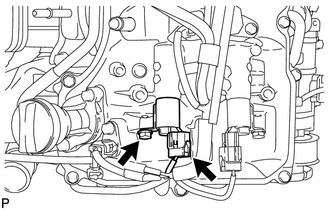

REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Exhaust Side of Bank 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the camshaft timing oil control valve connector.
2. Remove the bolt and camshaft timing oil control valve.
3. Remove the O-ring from the camshaft timing oil control valve.
