Removal [08/2015 - ]: Procedure

  1. REMOVE INSTRUMENT PANEL BOX ASSEMBLY
    1. Remove the instrument panel box (Refer to REMOVAL [08/2015 - 08/2019] , or refer to REMOVAL [08/2019 - 08/2021] , or refer to REMOVAL [08/2021 - ] ).
  2. REMOVE ECM
    1. Disconnect the 6 ECM connectors.

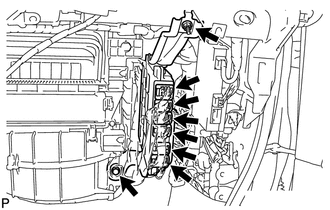

      GTY286377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt, nut and ECM.
  3. REMOVE ECM BRACKET
    1. Remove the 2 screws and ECM bracket.

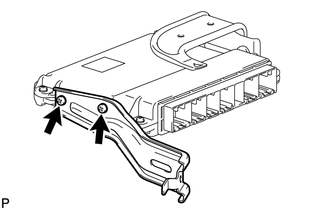

      GTY275041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 2 ECM BRACKET
    1. Remove the 2 screws and No. 2 ECM bracket.

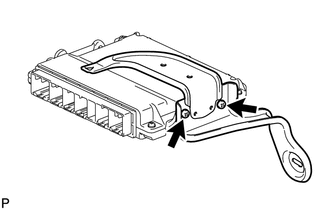

      GTY275038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
