Inspection [08/2015 - ]: Procedure
- INSPECT ENGINE COOLANT TEMPERATURE SENSOR TEXT IN ILLUSTRATION

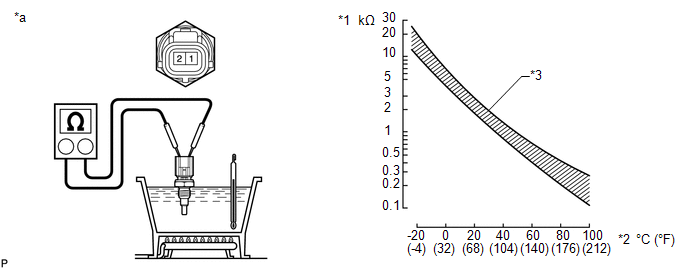

*1 Resistance *2 Temperature *3 Acceptable - - *a Component without harness connected
(Engine Coolant Temperature Sensor)- - - Partially immerse the sensor in water and warm up the water.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 1 - 2 Approx. 20°C (68°F) 2.32 k to 2.59 kΩ 1 - 2 Approx. 80°C (176°F) 0.310 k to 0.326 kΩ If the result is not as specified, replace the engine coolant temperature sensor.
NOTE:When checking the sensor in water, keep the terminals dry. After the check, wipe the engine coolant temperature sensor dry.
HINT:
If the result is as specified, do not replace the engine coolant temperature sensor.
