Removal [08/2015 - ]: Procedure

  1. REMOVE HEATED OXYGEN SENSOR (for Bank 1 Sensor 2)

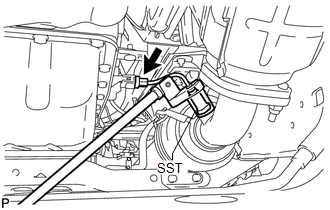

    1. Disconnect the heated oxygen sensor connector.
      GTY661944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, remove the heated oxygen sensor from the front No. 2 exhaust pipe.
      • SST: 09224-00010
  2. REMOVE HEATED OXYGEN SENSOR (for Bank 2 Sensor 2)

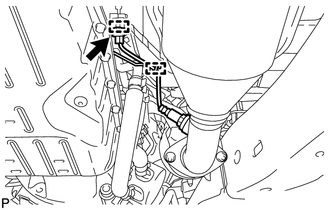

    1. Detach the 2 clamps and disconnect the heated oxygen sensor connector.
      GTY256151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

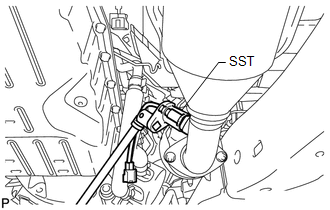

    2. Using SST, remove the heated oxygen sensor from the front exhaust pipe.
      GTY275553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09224-00010
