Components [08/2015 - ]

Fig 1: Ignition Coil And Spark Plug Replacement Components With Torque Specifications (1 Of 2)
GTY259412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

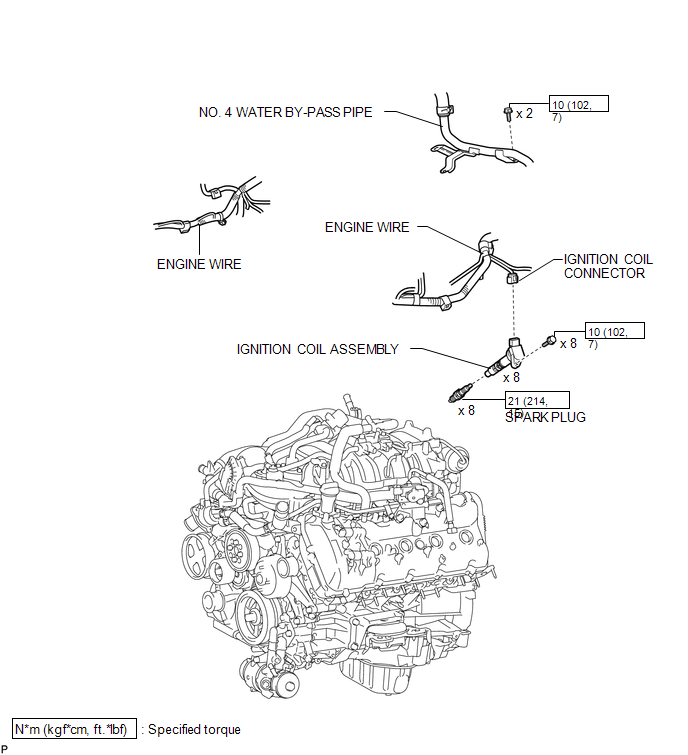

Fig 2: Ignition Coil And Spark Plug Replacement Components With Torque Specifications (2 Of 2)
GTY279709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
