On-Vehicle Inspection [08/2015 - ]: Procedure

INSPECT MASS AIR FLOW METER ASSEMBLY

Turn the engine switch on (IG) (do not start the engine).
Enter the following menus: Powertrain / Engine / Data List / All Data / MAF.

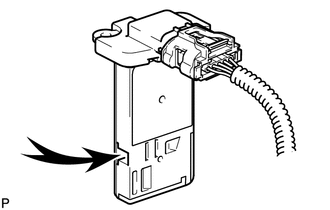

Blow air into the mass air flow meter assembly and check that the value of mass air flow meter assembly fluctuates.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

Air

The value changes.

If the result is not as specified, clean (air blow) the mass air flow meter assembly.

Refer to INSPECTION [08/2015 - ]

After cleaning (air blowing) the mass air flow meter assembly, perform an on-vehicle inspection of the mass air flow meter assembly again and replace the mass air flow meter assembly if the result is not as specified.
