Removal [08/2015 - ]: Procedure

  1. REMOVE AIR CLEANER CAP SUB-ASSEMBLY

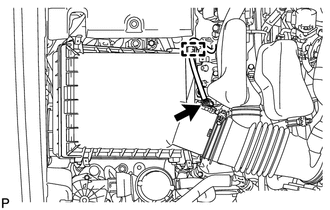

    1. Detach the clamp and disconnect the mass air flow meter assembly connector.
      GTY256346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

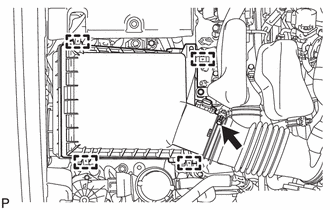

    2. Loosen the hose clamp.
      GTY1090855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Detach the 4 clips and air cleaner cap.
  2. REMOVE MASS AIR FLOW METER ASSEMBLY

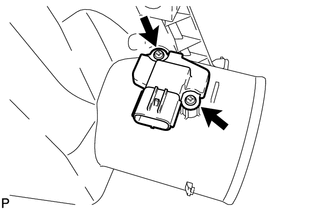

    1. Remove the 2 screws and mass air flow meter assembly.
      GTY275046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
