Removal [08/2015 - ]: Procedure

  1. REMOVE FAN AND GENERATOR V BELT
    1. Remove the fan and generator V belt (Refer to REMOVAL [08/2015 - ] ).
  2. REMOVE FRONT WHEEL
  3. REMOVE FRONT FENDER APRON SEAL RH

    Refer to PROCEDURE - Step 12 [08/2015 - 08/2020] , or refer to PROCEDURE - Step 12 [08/2020 - ]

  4. DRAIN POWER STEERING FLUID
  5. REMOVE POWER STEERING OIL PRESSURE SWITCH

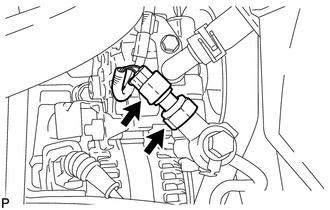

    1. Disconnect the power steering oil pressure switch connector.
      GTY275083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the power steering oil pressure switch.
    3. Remove the O-ring from the power steering oil pressure switch.
