Removal [08/2015 - 08/2019]: Procedure

  1. REMOVE LOWER STEERING COLUMN COVER

    Refer to PROCEDURE - Step 6

  2. REMOVE UPPER STEERING COLUMN COVER

    Refer to PROCEDURE - Step 8

  3. REMOVE DRIVER MONITOR CAMERA WITH BRACKET
    1. Remove the 3 screws.
      GTY616614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

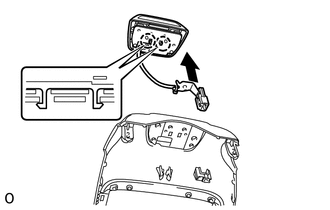

    2. Detach the 2 claws and remove the camera.
      GTY267021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
