Inspection [08/2015 - 08/2019]: Procedure

  1. INSPECT PRE-COLLISION SYSTEM CANCEL SWITCH ASSEMBLY
    1. Measure the resistance according to the value(s) in the table below.
      GTY638840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      1 (GND) - 2 (ECU) Pressed Below 1 Ω
      Not pressed 10 kΩ or higher

      If the result is not as specified, replace the pre-collision system cancel switch assembly.

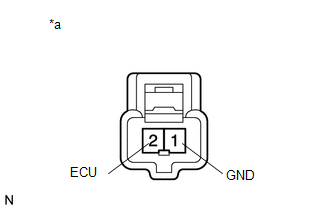

      TEXT IN ILLUSTRATION

      *a Component without harness connected
      (Pre-collision System Cancel Switch Assembly)
