Components [08/2019 - ]

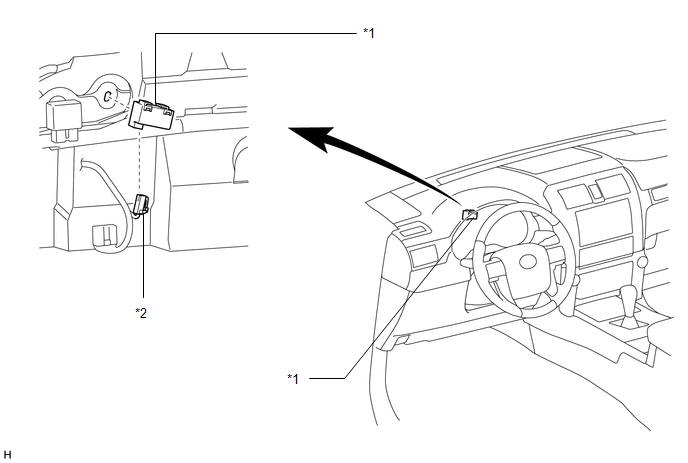

Fig 1: Pre-Collision System Warning Buzzer Replacement Components
GTY954291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 SKID CONTROL BUZZER ASSEMBLY (PRE-COLLISION SYSTEM WARNING BUZZER) *2 CONNECTOR
