Components [08/2015 - ]

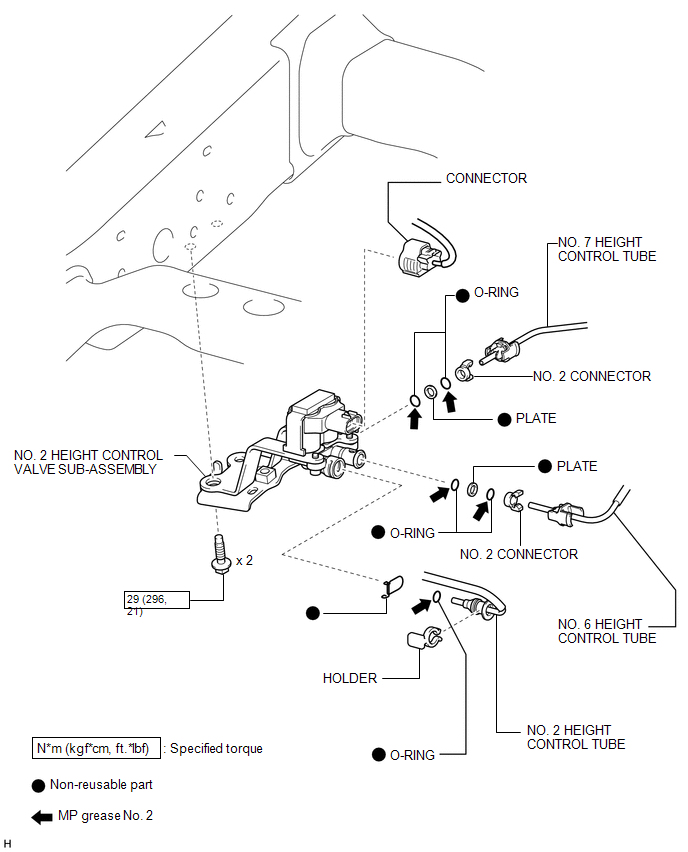

Fig 1: Control Valve Assembly Replacement Components With Torque Specifications [08/2015 - ]
GTY611907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
