Inspection [08/2015 - ]: Procedure

INSPECT NO. 2 HEIGHT CONTROL VALVE SUB-ASSEMBLY

Measure the resistance according to the value(s) in the table below.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard Resistance

Tester Connection	Condition	Specified Condition
1 (LH+) - 2 (E)	15 to 25°C (59 to 77°F)	10 to 14 Ω
3 (RH+) - 2 (E)	15 to 25°C (59 to 77°F)	10 to 14 Ω

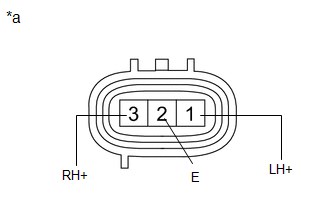

TEXT IN ILLUSTRATION

*a	Component without harness connected (No. 2 Height Control Valve)

Check the operating sound of the height control valve when battery voltage is applied to the terminals.

Measurement Condition	Specified Condition
1 (LH+) - 2 (E)	Sound of No. 2 height control valve operating can be heard
3 (RH+) - 2 (E)	Sound of No. 2 height control valve operating can be heard

If the result is not as specified, replace the No. 2 height control valve sub-assembly.
