Components [08/2015 - ]

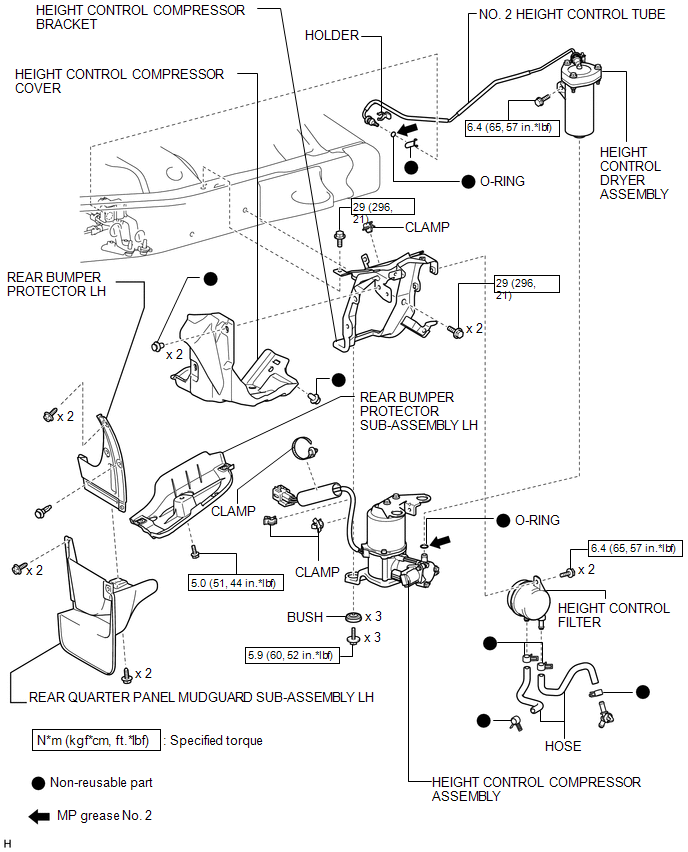

Fig 1: Height Control Compressor Replacement Components With Torque Specifications [08/2015 - ]
GTY621289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
