Installation [08/2015 - ]: Procedure

INSTALL HEIGHT CONTROL COMPRESSOR BRACKET
1. Install the height control compressor bracket with the 3 bolts.
  Torque: 29 N*m (296 kgf*cm, 21 ft.*lbf)
INSTALL HEIGHT CONTROL COMPRESSOR ASSEMBLY
1. Install the 3 bushes to the height control compressor.
2. Install a new O-ring.
3. Install the height control dryer with the bolt
  Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)
4. Install the height control compressor to the bracket with the 3 bolts.
  Torque: 5.9 N*m (60 kgf*cm, 52 in.*lbf)
5. Connect the connector.
6. Attach the clamp.
7. Attach the 3 clamps.
8. Connect the connector.
9. Attach the No. 2 height control tube.

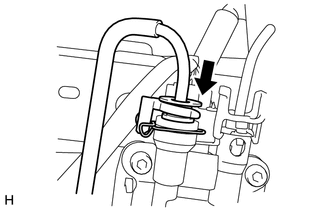

CONNECT NO. 2 HEIGHT CONTROL TUBE

Connect the No. 2 height control tube (Refer to PRECAUTION [08/2015 - ] ).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

For the connection procedure of the tube (type 2), refer to Precaution of the Suspension Control System section.

INSTALL HEIGHT CONTROL FILTER
1. Install the height control filter with the 2 bolts.
  Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)
2. Connect the 2 hoses with 2 new clips.
CHECK CONNECTIONS OF TUBES FOR AIR LEAK
1. Check the connections of the tubes for air leakage (Refer to PRECAUTION [08/2015 - ] ).
INSTALL REAR BUMPER PROTECTOR SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 1 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 1 [08/2019 - 08/2021] , or refer to PROCEDURE - Step 1 [08/2021 - ]
INSTALL HEIGHT CONTROL COMPRESSOR COVER
1. Install the height control compressor cover with 3 new clips.
INSTALL REAR QUARTER PANEL MUDGUARD SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 1
INSTALL REAR WHEEL LH
Torque: 112 N*m (1137 kgf*cm, 82 ft.*lbf)
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [08/2015 - 08/2019] , or refer to INITIALIZATION [08/2019 - 08/2021] , or refer to INITIALIZATION [08/2021 - 08/2022] , or refer to INITIALIZATION [08/2022 - ] ).
