Removal [08/2015 - ]: Procedure

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    NOTE:
    • w/ Navigation System:

      After the engine switch is turned off, the display and navigation module display (navigation system) records various types of memory and settings. As a result, after turning the engine switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.

      Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal

      Condition Waiting Time
      Vehicle enrolled in safety connect system 6 minutes
      Vehicle not enrolled in safety connect system 1 minute
    • When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [08/2015 - 08/2019] , or refer to INITIALIZATION [08/2019 - 08/2021] , or refer to INITIALIZATION [08/2021 - 08/2022] , or refer to INITIALIZATION [08/2022 - ] ).
  2. REMOVE REAR WHEEL LH
  3. REMOVE REAR QUARTER PANEL MUDGUARD SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 1

  4. REMOVE HEIGHT CONTROL COMPRESSOR COVER
    1. Remove the 3 clips and height control compressor cover.
  5. REMOVE REAR BUMPER PROTECTOR SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 11 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 13 [08/2019 - 08/2021] , or refer to PROCEDURE - Step 13 [08/2021 - ]

  6. REMOVE HEIGHT CONTROL FILTER
    1. Slide the 2 clips and disconnect the 2 hoses.

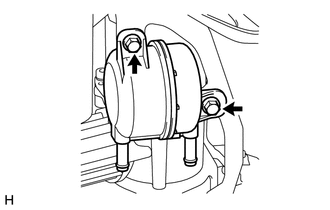

    2. Remove the 2 bolts and height control filter from the height control compressor bracket.
      GTY256814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. DISCONNECT NO. 2 HEIGHT CONTROL TUBE

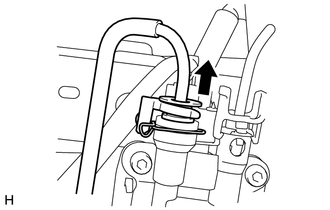

    1. Disconnect the No. 2 height control tube from the No. 2 height control valve (Refer to PRECAUTION [08/2015 - ] ).
      GTY263140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      For the disconnection procedure of the tube (type 2), refer to Precaution of the Suspension Control System section.

  8. REMOVE HEIGHT CONTROL COMPRESSOR ASSEMBLY

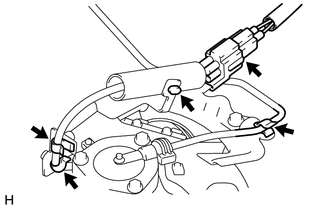

    1. Disconnect the connector.
      GTY647522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 3 clamps.
    3. Detach the No. 2 height control tube.
    4. Disconnect the connector.
      GTY682278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

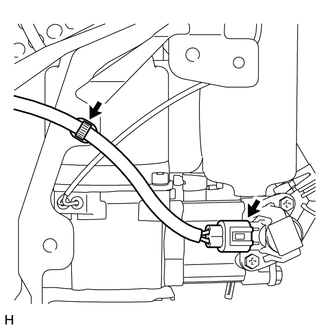

    5. Detach the clamp.

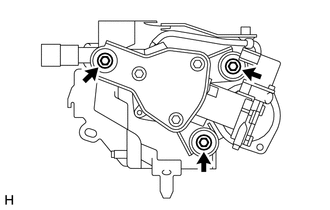

    6. Remove the 3 bolts and height control compressor.
      GTY647554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the bolt and height control dryer.
      GTY656860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

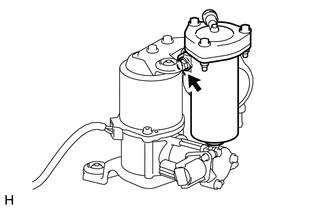

    8. Remove the O-ring.

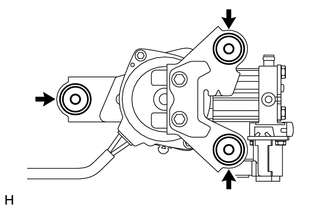

    9. Remove the 3 bushes from the height control compressor.
      GTY263159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE HEIGHT CONTROL COMPRESSOR BRACKET

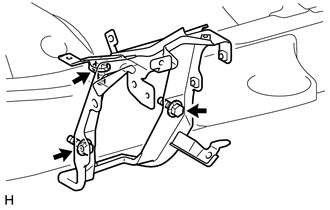

    1. Remove the 3 bolts and height control compressor bracket.
      GTY263163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
