Installation [08/2015 - ]: Procedure

INSTALL REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH

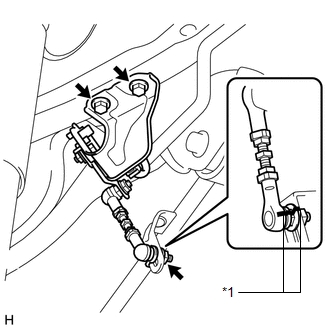

Install the height control sensor with the 2 bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 13 N*m (133 kgf*cm, 10 ft.*lbf)

TEXT IN ILLUSTRATION

Matchmark

NOTE:

Replace the rear height control sensor sub-assembly with a new one if it is dropped.

Align the matchmarks on the link and bracket.
Connect the sensor link with the nut.
Torque: 5.6 N*m (57 kgf*cm, 50 in.*lbf)
Connect the connector, and then attach the connector.
NOTE:
Securely connect the connector.
Attach the clamp.

INSTALL REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY RH
HINT:

Use the same procedure described for the LH side.
INSTALL REAR WHEEL
Torque: 112 N*m (1137 kgf*cm, 82 ft.*lbf)
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [08/2015 - 08/2019] , or refer to INITIALIZATION [08/2019 - 08/2021] , or refer to INITIALIZATION [08/2021 - 08/2022] , or refer to INITIALIZATION [08/2022 - ] ).
ADJUST VEHICLE HEIGHT
Refer to PROCEDURE - Step 5
