Removal [08/2019 - ]: Procedure

  1. REMOVE INSTRUMENT PANEL FINISH PANEL END LH

    Refer to PROCEDURE - Step 5 [08/2019 - 08/2021] , or refer to PROCEDURE - Step 3 [08/2021 - ]

  2. REMOVE NO. 1 INSTRUMENT PANEL FINISH CUSHION

    Refer to PROCEDURE - Step 19 [08/2019 - 08/2021] , or refer to PROCEDURE - Step 19 [08/2021 - ]

  3. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 20 [08/2019 - 08/2021] , or refer to PROCEDURE - Step 20 [08/2021 - ]

  4. REMOVE PATTERN SELECT SWITCH ASSEMBLY

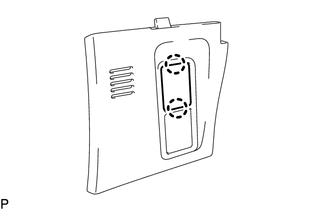

    1. Detach the 2 claws and remove the pattern select switch assembly from the lower instrument panel finish panel assembly.
      GTY956755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
