Components [09/2020 - ]

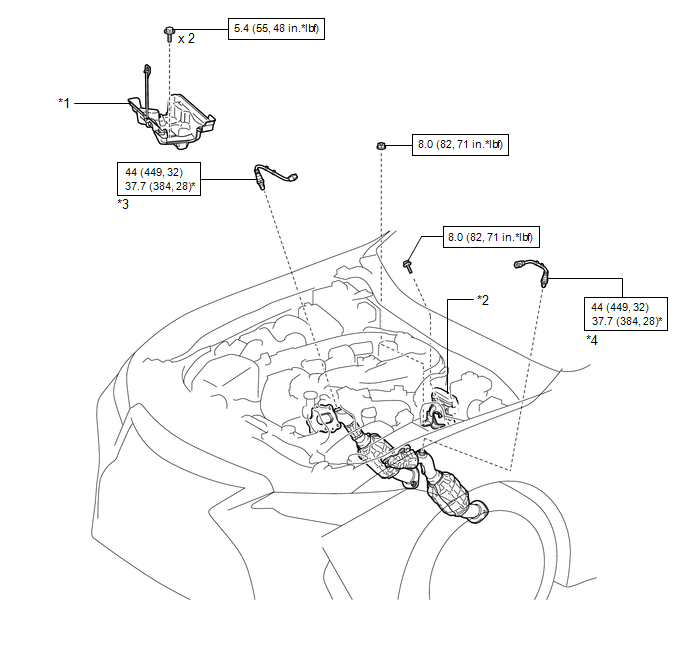

Fig 1: Air Fuel Ratio Sensor Replacement Components With Torque Specifications [09/2020 - ]
GTY1084104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 BATTERY TRAY *2 NO. 3 ENGINE ROOM RELAY BLOCK
*3 AIR FUEL RATIO SENSOR (for Bank 1) *4 AIR FUEL RATIO SENSOR (for Bank 2)
N.m (kgf/cm, ft.lbf): Specified torque * For use with SST
