Removal [10/2017 - 09/2020]: Procedure

Refer to REMOVAL [04/2013 - 09/2020]

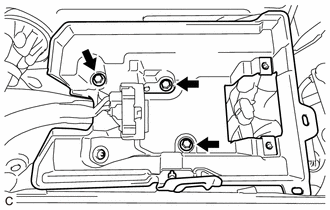

1. Remove the 3 bolts and battery tray.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

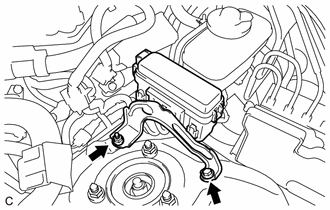

1. Remove the bolt and nut, and disconnect the No. 3 engine room relay block from the vehicle body.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

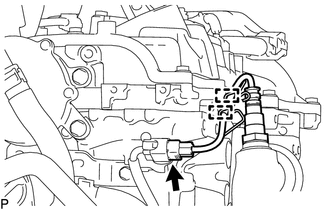

1. Disengage the 2 clamps and disconnect the air fuel ratio sensor connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

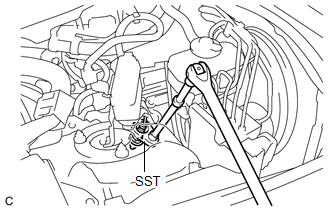

2. Using SST, remove the air fuel ratio sensor from the exhaust manifold sub-assembly RH (TWC: Front Catalyst).
   • SST: 09224-00012

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   If the air fuel ratio sensor has been struck or dropped, replace it.

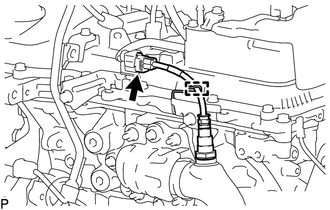

1. Disengage the clamp and disconnect the air fuel ratio sensor connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

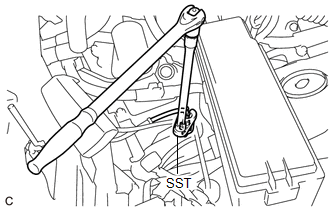

2. Using SST, remove the air fuel ratio sensor from the exhaust manifold sub-assembly LH (TWC: Front Catalyst).
   • SST: 09224-00012

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   If the air fuel ratio sensor has been struck or dropped, replace it.
