Removal [10/2017 - ]: Procedure

Refer to REMOVAL [10/2017 - ]

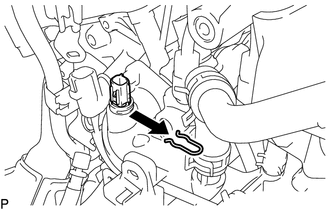

1. Disconnect the engine coolant temperature sensor connector.
2. Remove the clip and engine coolant temperature sensor.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   If the engine coolant temperature sensor has been struck or dropped, replace it.
