Components [10/2017 - 09/2020]

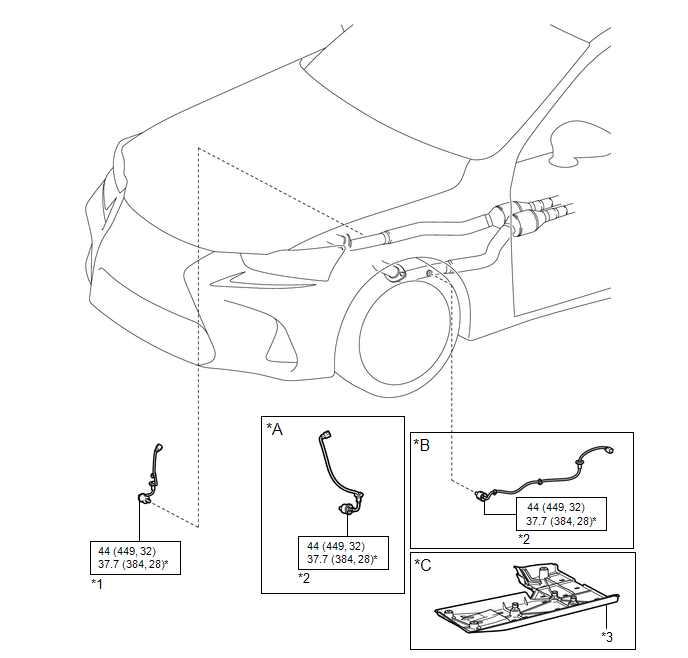

Fig 1: Heated Oxygen Sensor Replacement Components With Torque Specifications [10/2017 - 09/2020]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A
for 2WD
*B
for AWD
*C
w/ Front Floor Cover LH
-
-
*1
HEATED OXYGEN SENSOR (for Bank 1)
*2
HEATED OXYGEN SENSOR (for Bank 2)
*3
FRONT FLOOR COVER LH
-
-
N.m (kgf/cm, ft.lbf): Specified torque
*
For use with SST
