Inspection [10/2017 - ]: Procedure

  1. INSPECT HEATED OXYGEN SENSOR
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance (for Bank 1)

      Tester Connection Condition Specified Condition
      1 (HT1B) - 2 (+B) 20°C (68°F) 5 to 10 Ω
      1 (HT1B) - 4 (E2) Always 10 kΩ or higher

      Standard Resistance (for Bank 2)

      Tester Connection Condition Specified Condition
      1 (HT2B) - 2 (+B) 20°C (68°F) 5 to 10 Ω
      1 (HT2B) - 4 (E2) Always 10 kΩ or higher

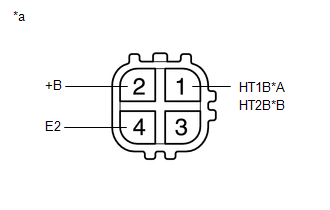

      GTY654933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for Bank 1
      *B for Bank 2
      *a Component without harness connected
      (Heated Oxygen Sensor)

      If the resistance is not as specified, replace the heated oxygen sensor.
